Oilfield Valves
Knife Gate Valves |
All cast stainless steel construction.
Solid one piece cast body in corrosion resistant stainless steel.
150 PSI working pressure.
Available in sizes from 2" to 72" diameter.
Metal seated knife gate valves, Resilient seated knife gate valves, Bonneted knife gate valves, Slide gate valves, Split ductile body knife gate valves, Fabricated and custom designed knife gate valves |
Gate Valves |
We offer several Oteco®, Oteco®-style and Demco®-style gate valve models for different applications. Pressures include: 2000 psi, 3000 psi and 5000 psi.
Sizes include: 2", 3", 4", or 5". Temperature Ratings: 400� F / 240� C. Service Types incldue: Waterflood, Sour Gas, or Standard.
Connections: Threaded, Buttweld, Flanged, Union, or Extreme-Condition Flanged.
Oteco Gate Valve , Oteco Standard Gate Valve , Model 72 Gate Valve , Model 66 Gate Valve , Oteco DM Style Gate Valve |
Reset Relief Valves |
These reset release valves were designed mainly for drill mud use, but will also work well with any gas and liquid. These valves were built to provide reliable and accurate protection from extreme pressures. Valve can be opened at any time by pressing the release button. Turning a nut changes the pressure rating. Available in many sizes and flanged version. We offer 2" Type B, and 3" Type B and Type C models. |
Oteco® Reset Relief Valves |
This manual reset relief valve protects mud manifolds and slush pumps while offering greater operational safety.
The valve can be opened manually by pressing a manual release button. When a predetermined pressure is exceeded, it automatically opens to full.
Oteco Reset Relief Valve , Oteco RRV , 2" Reset Relief Valve , 2 inch RRV , 3" Reset Relief Valve , 3 inch RRV |
Titan Class "C" and "CH"
|
Titan Class "C" and "CH" Relief Valves feature an innovative seal design, DNV Certified, rugged nickle alloy 718 body insert, hydraulically cushioned and balanced piston, set pressures from 400 psi to 6200 psi, standard and Nace MR-0175 service type, -20° to 225° temperature rating, 148 CV flow area, flanged end connection with or without butt weld prep ISO 9001:2000, 3" SCH XXH Butt Weld, 602, 1002, or 1502 union connections. The bonnet and top-loaded piston and seals can be removed while body is in line. API, ANSI Flange and Custom End Connection are available upon request. |
Titan Class 3-inch "B"
|
The Titan Class 3-inch "B" Reset Relief Valve features a rugged nickle alloy 718 body insert, innovative seal design, DNV Certified, set pressures from 400 psi to 5000 psi, standard and Nace MR-0175 service type, -20° to 250° temperature rating, 148 CV flow area, threaded end ISO 9001:2000. When the set pressure is achieved, the valve automatically snaps to a full open position. The bonnet and top-loaded piston and seals can be removed while body is in line. API, ANSI Flange and Custom End Connection are available upon request. |
Titan Class "RX"
|
Titan Class "RX" Reset Relief Valves feature a hydraulically cushioned and balanced piston, rugged nickle alloy 718 body insert, innovative seal design, DNV Certified, set pressures from 200 psi to 8000 psi, standard and Nace MR-0175 service type, -20° to 225° temperature rating, 148 CV flow area, flanged end connection with 1502 or butt weld prep ISO 9001:2000 and ABS Type approved, 3-1/2" XXH Butt Weld, or 3" 1502 union connections. The bonnet and top-loaded piston and seals can be removed while body is in line. API, ANSI Flange and Custom End Connection are available upon request. |
Titan Class "BX"
|
The Titan Class "BX" Reset Relief Valve is the ONLY fully automatic reset relief valve on the market today. When the pump exceed the set pressure, the valve will fully open via an electronic system. After a preset time delay is reached, the valve will automatically close using instrument air pressure. No need for manual reset. This valve features set pressures from 0 - 10,000 psi, standard and Nace MR-0175 service type, -22° to 200° valve temperature rating, 32° to 104° control panel temperature rating, API studded connections, flanged end connection with 1502 or butt weld prep ISO 9001:2000 and ABS Type approved, 3-1/2" XXH Butt Weld, or 3" 1502 union connections. |
Pressure Relief Valves |
We carry several shear relief valve models for different applications. Certification: Det Norske Veritas (DNV) Type Approval.
Pressures Ranging from 125 psi to 10,000 psi. Sizes include: 2" or 3". Temperature Rating: 250� F / 120� C.
Flow Area: 1.8 to 4.2 sq. in. For use with Waterflood, Sour Gas, or Standard service with Union, Threaded or Flanged connections.
Oteco Pressure Relief Valve , Oteco PRV , 2" Pressure Relief Valve , 2 inch PRV , 3" Pressure Relief Valve , 3 inch PRV |
Butterfly Valves |
Butterfly valves are available in sizes ranging from 2" to 24" and can handle 175 psi working pressures. Body styles come in Lug, Notched and Wafer types. Stem extensions, long and short neck models are available. Due to a low profile disc design, these butterfly valves provide superior flow regardless of style or size. |
Inside BOP Valves |
Protect your pumps, swive, standpipe, and from drill-string kicks with the inside B.O.P valve. Use the inside BOP valve anytime well kicks are expected, like when drilling through transitional zones. It is designed to be run thru most BOP stacks as an integral string part. The top vent allows fluids to partially flow by allowing safer and faster emergency stabbing. |
Float Valves |
We offer drill pipe float valves in both plunger (Models F, FA, FC), and flapper (Model G, GA, GB, GC, GBA, GCA) types.
These float valves can be equipped for use in high-temperature environments.
When positioning the float valve in the drilling string, please take caution.
Failure to fill drillpipe regularly when going in the hole can cause
hydro-static pressure damaging the float valve and drill pipe.
Oteco Float Valve , Model F - Plunger Type Standard Float Valve , Model FA - Plunger Type Pressure Monitoring Float Valve , Model FC - Plunger Type Automatic Fill Float Valve , Model G - Flapper Type Standard Float Valve , Model GA - Flapper Type Pressure Monitoring Float Valve , Model GB - Flapper Type Air Drilling Float Valve , Model GC - Flapper Type Automatic Fill Float Valve , Model GBA - Flapper Type Air Drilling Ported Float Valve , Model GCA - Flapper Type Automatic Fill and Pressure Monitoring Float Valve |
Ball Valves |
We offer a huge range of oilfield NPT ball valves in all sizes and pressure rating for use in various service application. Please contact us today and let us know your requirments so we can help you select the right ball valve for your specific needs. |
Ball Type Safety Valves |
These safety valves are engineered to be stabbed into the tubing at the rig floor or top joint of the drill pipe, and closed quickly in case the well kicks. The Kelly can be reconnected, safety valve opened, and circulation initiated after the weight material is added to the mud. |
Charging Valves |
Charging valves are used for purging, charging and/or leak testing and are installed in an open center hydraulic system between the pump and the secondary hydraulic components. Given oil delivery and pressure from the pump is not impeded, full system pressure is available at all times to the downstream hydraulic components. |

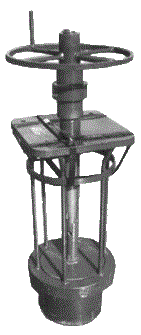

Suction, Dump & Equalizer Valves |
We offer a complete line of suction valves, equalizer valves and dump valves. These valve are available in 6", 8", 10", and 12" sizes with
lever type or screw type operators. All valves are manufactured to fit suction line, suction height, and tank depth requirements.
PDF Downloads: Suction & Dump Valve Specs Suction & Dump Valve Drawing |
Plug Valves |
We carry a wide selection of 5,000 to 15,000 psi plug valves in 1", 2" and 3" sizes. Popular Types include 2" Male LP, 2" 1502 Union End w/ Wing Nut, 3.5" I.F. Box x Pin. Popular H2S Service Types include 2" 2202 Union End w/ Wing Nut, 4. 12 4-thd 60° Stub Box x Pin. |
Flanged Plug Valves |
Manufactured from the highest grade materials, these valves exceed API-6A requirements and may be used for standard or H2S service. Ring Joint Type Flanges End Popular Types include 2.25" I.D. Flange Full Open R 24 Ring, 3.25 I.D. Flange Full Open BX 154 Ring, and more... |
Kelly Valves |
We offer 1 piece and 2 piece Kelly valves with working pressure ratings ranging from 10,000 psi to 15,000 psi. Kelly valves are durable, strong, compact and easy to handle. |
Suction Valves |
We offer a complete line of suction valves. These valve are available in 6", 8", 10", and 12" sizes with lever type or screw type operators. All valves are manufactured to fit suction line, suction height, and tank depth requirements. |
Stem Guided Valves
|
These stem guided valves and seats feature a wider metal to metal seal on the valve flange. The rigid seat cross-arms give positive sealing and greater strength. The serrated upper surface on the valve enhances the non-breathing seal between insert and valve body. The thick, strong, valve nut holds the insert tightly, thus reducing breathing and flex, lessening the chance of foreign matter getting between the insert and valve. |
Valve Springs |
We carry several different valve springs to go along with our premium valves and valve seats. Tell us about your application and we can help match the right valve spring for your needs. |
Premium Valve Seats |
These premium stem guided valves and seats weighs less than many of their competitors. They provide good quality and are economically priced. |
Hydraulic Valve Seat Puller |
Our hydraulic valve seat puller toolkit is designed to be used a variety of valve seat puller heads (sold separately). |
Valve Seat Puller Heads |
We offer a wide range of valve seat puller heads. Please specify pump and seat type when ordering so we can get the right puller heads for your needs. |
Bleed Rings |
Bleed Rings provide an easy way to drain pipe, take samples, attach instruments, or even bleed a valve. Bleed rings can be used in a wide range of configurations. A bleed ring may be used to vent between two gate valves, they may have one or more outlets, and they may be installed with pressure guages. When used with a blind flange and valve, if your valve is leaking it allows you to relieve the pressure before you remove the flange. |
Our parts catalog is so extensive that many items are not listed on this website.
If you do not find the products you are looking for, please contact us by email at sales@americanoilfieldtools.com or call us at (832) 474-4440.
